Engraving Machines

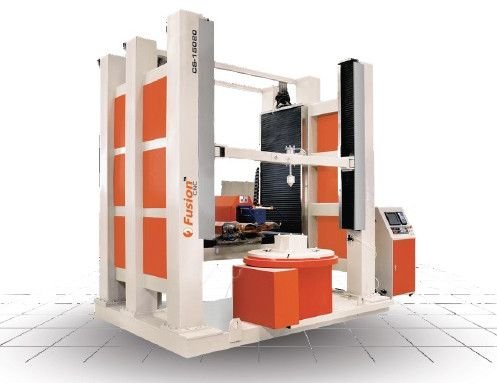

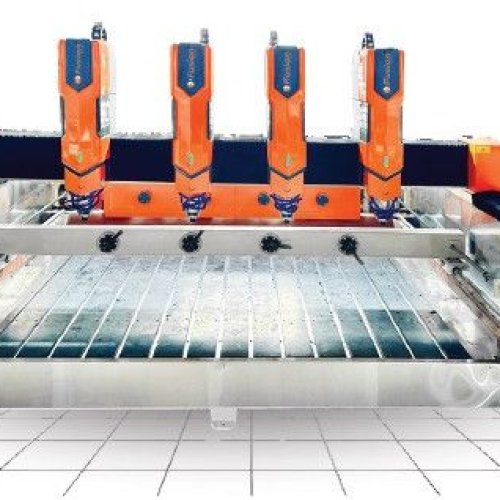

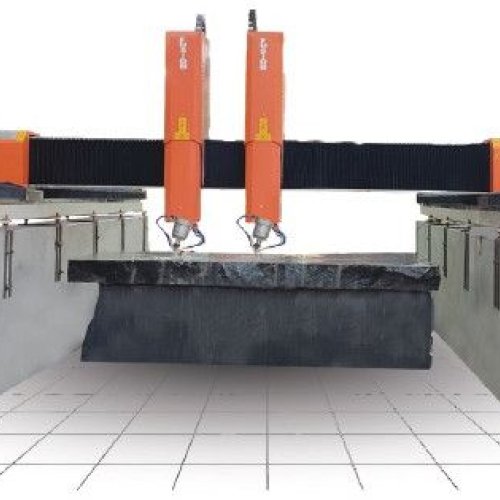

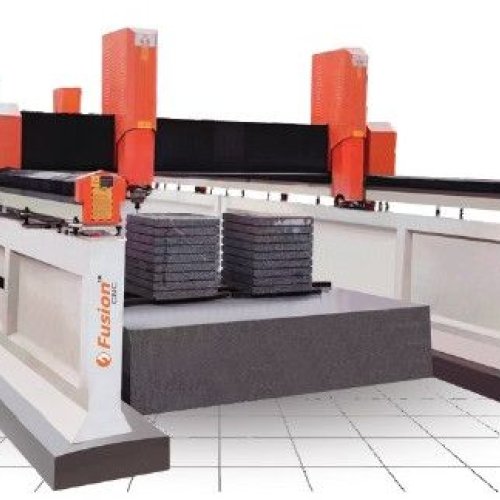

Leading Manufacturers, Exporters and Wholesaler of 4 Axis Dual Head Swing Engraving Machine, 4 Axis Large 3D Engraving Machine, 4 Axis Rotating Engraving Machine, 4 Axis Single-head Swing Engraving Machine, 5 Axis CNC Engraving Machine, Double Countertop Special Shaped Engraving Machine and Four Head Dual Purpose Engraving Machine from Ahmedabad.

Business Type Manufacturer, Exporter, Supplier
Working Size 3000 X 5500 X 900MM
Machine Type Engraving Machine
Working Desk Automatic Flip Infrared Machine Surface
Control System Weihong NK300CX With Hand Control Remote
Spindle Motor 7.5KW, 800HZ, ER32 Spindle
Guide & Ball Screw Taiwan Hiwin Guide XY30 , Z 35
Working Accuracy ±0.5mm
Spindle Speed 0-24000rpm
Max Traveling Speed 20000mm/min
Max Working Speed 12000mm/min
Working Voltage AC380V/50Hz AC380V/ 60Hz - 3 Phase
Transmission Way Reducer Japan SIMPOX
Lubricating System Automatic Oil Filling System
Refrigeration Systems 10 L Industrial Chiller
Drive And Motor Full Servo Systems ( Dorna 1.2kw, Z Axis With Brake )
XYZ Structure X,Y Rail With Rack & Pinion Z -Ball Screw With High Precision
Maximum Working Thickness Of Stone 550mm

Click to view more


Request to Call


Business Type Manufacturer, Exporter, Supplier
More Info. View
Axis 4 Axis
Size Large
Usage Engraving
Compatibility Various Materials
Power High Power
Speed High Speed
Precision High Precision
Software Compatible Software Included

Click to view more


Request to Call


Business Type Manufacturer, Exporter, Supplier
More Info. View
Working Size 3000 X 5500 X 900MM
Machine Type Engraving Machine
Working Desk Automatic Flip
Control System Weihong NK300CX
Spindle Motor 7.5KW, 800HZ, ER32
Guide Taiwan Hiwin Guide XY30 , Z 35
Working Accuracy ±0.5mm
Spindle Speed 0-24000rpm
Max Traveling Speed 20000mm/min
Max Working Speed 12000mm/min
Working Voltage AC380V/50Hz AC380V/ 60Hz - 3 Phase
Transmission Way Reducer Japan SIMPOX
Lubricating System Automatic Oil Filling System
Refrigeration Systems 10 L Industrial Chiller
Drive And Motor Full Servo Systems ( Dorna 1.2kw, Z Axis With Brake )
XYZ Structure X,Y Rail With Rack & Pinion Z -Ball Screw With High Precision
Maximum Working Thickness Of Stone 550mm

Click to view more

Established in 2012 as FUSION TECHNOCRAFT and incorporated as an LLP on May 17, 2018, FUSION CNC TECHSYSTEMS LLP is a leading manufacturer and importer of advanced CNC Stone Carving and Cutting Machine technology and stone diamond tools. Under the visionary leadership of Mr. Manish Sukhadia, Founder and Managing Partner, the company specializes in a diverse product range including CNC engraving and cutting machines, profiling machines, stone temple and pillar carving systems, sculptures, granite monuments, and tombstone machinery. Renowned for exceptional performance, high durability, low maintenance costs, and competitive pricing, Fusion CNC ensures the highest quality by using premium raw materials and maintaining a robust network of trusted vendors with an efficient bulk manufacturing infrastructure. Driven by innovation and guided by experience, Fusion CNC continues to build a strong presence in the stone processing machinery industry and shape excellence in CNC technology and stone craftsmanship.

Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier
More Info. View
Working Size 1500 X 3700 X 600mm
Spindle Motor 7.5KW, 800HZ, ER32 Spindle
Guide Taiwan Hiwin Guide XY30 , Z 35
Working Accuracy ±0.5mm
Spindle Speed 0-24000rpm
Max Traveling Speed 20000mm/min
Max Working Speed 12000rnm/min
Working Voltage AC380V/50Hz AC380V/ 60Hz - 3 Phase
Transmission Reducer
Lubricating System Automatic Oil Filling System
Refrigeration System 10 L Industrial Chiller
Drive And Motor Full Servo Systems
Maximum Working Thickness Of Stone 400 Mm

Click to view more


Request to Call


Business Type Manufacturer, Exporter, Supplier
More Info. View
Machine Power 16kw
Spindle Parameters 7.5kw Water Cooling Splinderrpm18000 - 24000 with Air Seal Protection
Repeat Positioning Accuracy ±0.03mm
Processing Accuracy ±0.1mm
Maximum Empty Line Speed 25m/min
Operating Voltage AC 380V/50Hz
Water Supply Available
Water Flow Rate 3m³/h
Gas Supply Pressure 0.4mpa
Gas Type Dry Gas
Minimum Floor Space 18m²
Foundation Requirements Hard Concrete Floor
Water Circulation External Circulating Water Required

Click to view more


Request to Call


Business Type Manufacturer, Exporter, Supplier
More Info. View
Processing Size 3700x1500x500 Mm
Cylinder Size 600x1500 Mm
Spindle Motor 7.5 KW*4 Water Cooling
Working Accuracy ±0.5 Mm
Spindle Speed 0-24000 Rpm
Max Traveling Speed 20000 Mm/min
Max Working Speed 12000 Mm/min
Working Voltage AC380V/50Hz AC380V/60Hz - 3 Phase
Drive And Motor Servo Systems
Control System NC Studio/Shanlong
XYZ Structure X,Y Rail With Rack & Pinion Z -Ball Screw With High Precision
Ball Screw Taiwan

Click to view more


Request to Call


Business Type Manufacturer, Exporter, Supplier
More Info. View
Working Size 3000 X 5500 X 900MM
Machine Type Gentry Type
Working Desk Automatic Flip Infrared Machine Surface
Control System Weihong NK300CX With Hand Control Remote
Spindle Motor 7.5KW, 800HZ, ER32 Spindle
Guide & Ball Screw Taiwan Hiwin Guide XY30, Z35
Working Accuracy ±0.5mm
Spindle Speed 0-24000rpm
Max Traveling Speed 20000mm/min
Max Working Speed 12000mm/min
Working Voltage AC380V/50Hz, AC380V/60Hz - 3 Phase
Transmission Way Reducer Japan SIMPOX
Lubricating System Automatic Oil Filling System
Refrigeration Systems 10 L Industrial Chiller
Drive And Motor Full Servo Systems (Dorna 1.2kw, Z Axis With Brake)
XYZ Structure X,Y Rail With Rack & Pinion Z -Ball Screw With High Precision
Maximum Working Thickness Of Stone 550mm

Click to view more


Request to Call
