CNC Cutting Machine
Leading Manufacturers, Exporters and Wholesaler of CNC 5 Axis Bridge Saw Machine, CNC Column Cutting Machine, CS-3915 4 Four Head Horizontal CNC Cutting Machine, Dual Head Horizontal CNC Cutting Machine, Dual Head Vertical CNC Cutting Machine, Heavy Duty 5 Axis CNC Machine Center, Three Head Horizontal CNC Cutting Machine, YXSJ-2400-13H Intelligent CNC Wire Saw Machine and YXSJ-3000-16H Intelligent CNC Wire Saw Machine from Ahmedabad.
| Business Type | Manufacturer, Exporter, Supplier |
| More Info. |  View |

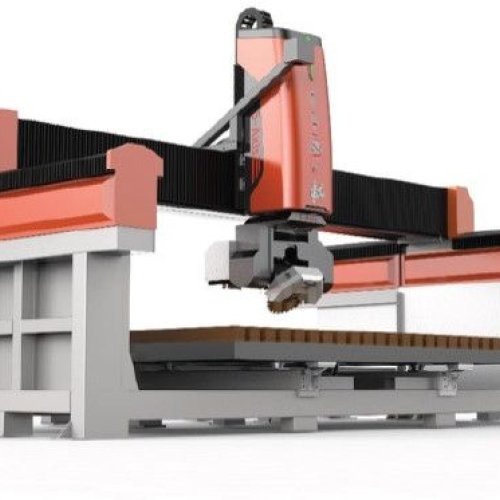

| Type | CNC 5 Axis Bridge Saw Machine |
| Processing Size | X:3600mm Y:2500mm Z:600mm |
| Fabric | Steel Structure |
| Color | Anti Rust Paint |
| Packaging Type | Standard |
| Feeding Height | 300mm (700mm Blades) |
| Control System | Cut CAM Full Functions Version Ethercat |
| Table Turning Angle | 0-85° |
| Head Rotation Angle | -360°~360° |
| Maximum Travelling Speed | 25m/min |
| Blade Diameter | Max 350mm~700mm |
| Main Motor Power | 22KW SNT Brand With Inverter |
| Total Power | 38KW |
| Ball Screw | TBI Taiwan-4010 |
| Rack | Hiwin X 35, Y 30 Double, Z 35 |
| Inverter | Veichi-China |
| Disconnector | Schneider Brand |
| Disconnecting Switch | Schneider Brand |
| Contactor | Schneider Brand |
| Emergency Stop Button | Siemens Brand |
| System Power Supply | MW Brand |
| Water Consumption | Automatic Supply |
| Gross Weight | ≈7800kg |
| Operating Voltage | 3P/380V/50Hz |
| Frequency | 50Hz |
| Tool Setter | Automatic For Blades And Side Spindle Tool |
| Thickness Probe | Automatic For Slab Thickness Measure |
| Camera | HIK VISION Camera Self-positioning With Cover |
| Ambient Temperature | 0~45°C |
Configuration Description
1. Main motor: high quality permanent magnet motor
2. System: Cut CAM intelligent system
3. Ethernet interface
4. 19-inch LCD touch screen computer
5. Drive and motor: Ether CAT absolute value servo and drive
6. Gears, racks, and guide rails: high-precision for all from Taiwan
7. Lubrication method: the gears, racks and guide rails of the X and Z axis are refueled by automatic oil pumps, the A/C axis are lubricated with grease, and the gears, racks and guide rails of the Y axis are lubricated by oil tank.
Cutting function:
1. Cutting (square, polygonal, shaped, round, chamfered, fan-shaped, oval, countertops, etc.)；
2. Profiling function; (straight lines, arc lines, oblique lines, wavy lines, etc.)；
3. One-click insert via AutoCAD for any shape cutting (Select in CAD, confirm, the system automatically obtains the cutting data

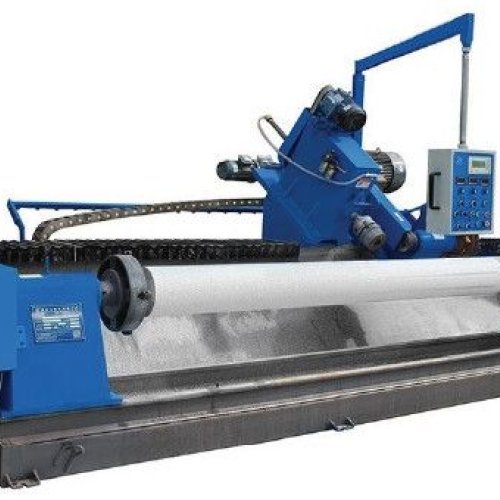

| Business Type | Manufacturer, Exporter, Supplier |
| More Info. | View |
| Max Working Length | 3500 Mm |
| Max Working Diameter | 200-500 Mm |
| Saw Blade | 400 Mm |
| Main Motor | 15 KW |
| Total Power | 30 KW |
| Water Consumption | 5 M³/h |
| Weight | 4500 KG |
| Machine Size | 5800x2400x1200 Mm |
| Control System | Dinosaw CNC |
| Business Type | Manufacturer, Exporter, Supplier |
| More Info. | View |
| Type | CNC Cutting Machine |
| Model | CS-3915-4 |
| Working Size | 3900 X 1500 X 500 Mm |
| Maximum Stone Size | 800 X 1500 Mm |
| Spindle Motor | 7.5KW*4 Water Cooling |
| Working Accuracy | +/- 0.5mm |
| Spindle Speed | 0 - 24000rpm |
| Max Traveling Speed | 20000mm/min |
| Max Working Speed | 12000mm/min |
| Working Voltage | AC380V/60Hz - 3 Phase |
| Drive And Motor | Hybrid Servo |
| Control System | Weihong NKI 05 G2 Hand Control Remote System |
| XYZ Structure | X,Y Rail With Rack & Pinion Z -Ball Screw With High Precision Ball |
| Transmission Way | Reducer Japan |
| Block & Guide | Hiwin 25 & 30 Taiwan Brand |
| Rack Precision | Halick Drive |
| Screw | Taiwan Brand TBI Screw |
| Lubrication System | Automatic Oil Filling Pump |
| Instruction | G Code |

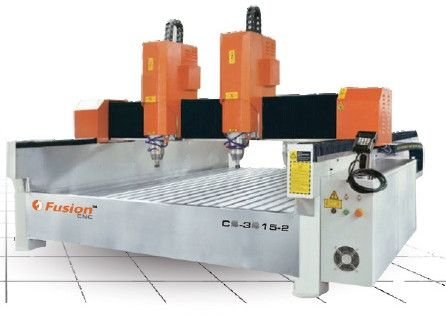

| Business Type | Manufacturer, Exporter, Supplier |
| More Info. | View |
| Model | CS-1530-2,CS-3015-2,CS-3700-2 |
| Working Size | 1500 X 3000 X 500 Mm,3000 X 1500 X 500 Mm |
| Spindle Motor | 7.5KW Water Cooling |
| Working Accuracy | +/- 0.5mm |
| Spindle Speed | 0 - 24000rpm |
| Max Traveling Speed | 20000mm/min |
| Max Working Speed | 12000mm/min |
| Working Voltage | AC380V/60Hz - 3 Phase |
| Drive And Motor | Hybrid Servo |
| Control System | Weihong NKI 05 G2 Hand Control Remote System |
| XYZ Structure | X,Y Rail With Rack & Pinion Z -Ball Screw With High Precision Ball Screw - Taiwan |
| Transmission | Reducer Japan, Block & Guide Hiwin 25 & 30 Taiwan Brand, Rack Precision Halick Drive, Screw Taiwan Brand TBI Screw |
| Lubrication System | Automatic Oil Filling Pump |
| Instruction | G Code |
| Business Type | Manufacturer, Exporter, Supplier |
| More Info. | View |

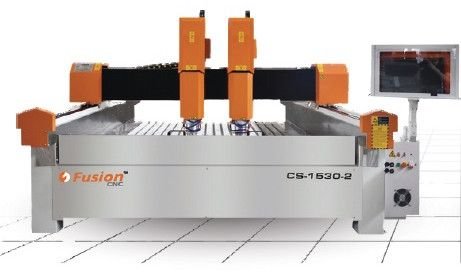

| Model Name/Number | CS-1530-2,CS-3015-2,CS-3700-2 |
| Working Size | 1500 X 3000 X 500 Mm,3000 X 1500 X 500 Mm |
| Spindle Motor | 7.5KW Water Cooling |
| Working Accuracy | +/- 0.5mm |
| Spindle Speed | 0 - 24000rpm |
| Max Traveling Speed | 20000mm/min |
| Max Working Speed | 12000mm/min |
| Working Voltage | AC380V/ 60Hz - 3 Phase |
| Drive And Motor | Hybrid Servo |
| Control System | Weihong NKI 05 G2 Hand Control Remote System |
| XYZ Structure | X,Y Rail With Rack & Pinion Z -Ball Screw With High Precision Ball Screw - Taiwan |
| Transmission Way | Reducer Japan, Block & Guide Hiwin 25 & 30 Taiwan Brand, Rack Precision Halick Drive, Screw Taiwan Brand TBI Screw |
| Lubrication System | Automatic Oil Filling Pump |
| Instruction | G Code |
| Business Type | Manufacturer, Exporter, Supplier |
| More Info. | View |
| Country of Origin | India |
| Machine power | 16KW |
| Spindle Parameters | 15 KW with air protection -BT40 |
| Blade Diameter | Max：350mm~600mm |
| Saw Blade Power | 22kw with Inverter |
| Repeat positioning accuracy | ±0.03mm |
| Operating Voltage | AC 380V/50Hz |
| Water Supply | Available |
| Water Flow Rate | 3m³/h |
| Gas Supply Pressure | 0.4mpa |
| Gas Type | Dry Gas |
| Minimum Floor Space | 18m² |
| Foundation Requirements | Hard Concrete Floor |
| Water Circulation | External Circulating Water Required |

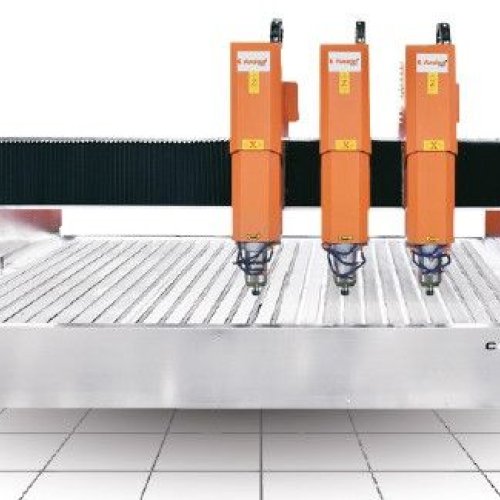

| Business Type | Manufacturer, Exporter, Supplier |
| More Info. | View |
| Model | CS-3014-3 |
| Working Size | 3000 X 1400 X 500 Mm |
| Maximum Stone Size | 900 X 1400 Mm |
| Spindle Motor | 7.5KW Water Cooling |
| Working Accuracy | +/- 0.5mm |
| Spindle Speed | 0 - 24000rpm |
| Max Traveling Speed | 20000mm/min |
| Max Working Speed | 12000mm/min |
| Working Voltage | AC380V/60Hz - 3 Phase |
| Drive And Motor | Hybrid Servo |
| Control System | Weihong NKI 05 G2 Hand Control Remote System |
| XYZ Structure | X,Y Rail With Rack & Pinion Z -Ball Screw With High Precision Ball |
| Transmission Way | Reducer Japan |
| Block & Guide | Hiwin 25 & 30 Taiwan Brand |
| Rack Precision | Halick Drive |
| Screw | Taiwan Brand TBI Screw |
| Lubrication System | Automatic Oil Filling Pump |
| Instruction | G Code |

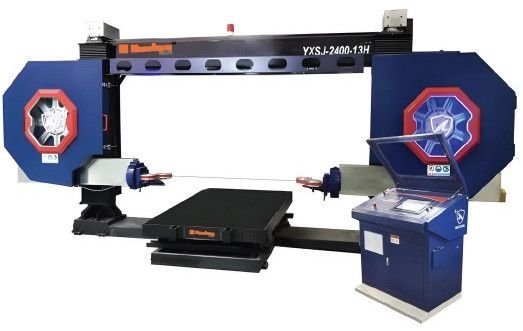

| Business Type | Manufacturer, Exporter, Supplier |
| More Info. | View |

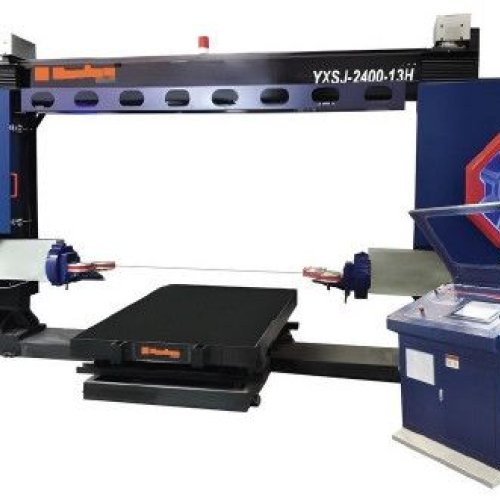

| Model | YXSJ-2400-13H |
| Max.Working Dimensions | 3000* 24 00* 120 0mm |
| Worktable Size | 25 00* 13 00m M |
| Wire length | 14200 mm |
| Main Motor Power | 11KW |
| Water Consumption | 3 m³/h |
| Overall Dimensions | 6000x7000x2500 mm |
| Approximate Weight | 4200 KGS |

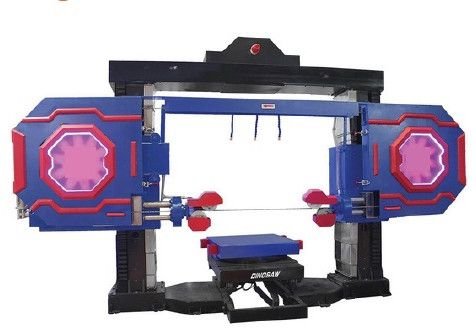

| Business Type | Manufacturer, Exporter, Supplier |
| More Info. | View |
| Max Working Dimensions | 3000*2400*1200mm |
| Worktable Size | 2500*1300mm |
| Worktable Bearing | 20 Tons |
| Wire Length | 14200mm |
| Wire Diameter | φ7.2-9mm |
| Main Motor Power | 15KW |
| Water Consumption | 3 M³/h |
| Overall Dimensions | 6000x7000x2500 Mm |
| Approximate Weight | 4200 KGS |
| Control System Learning Time | 5 Minutes |
| Control System | CNC Profiling |
| Controller Touch Screen | YES |
| Cutting Accuracy | ≤1mm |
| Remote Lifetime Upgrade Of System Functions | YES |
| Control System Features | Broken Rope Fault Protection Alarm, Electric Guide Wheel Distance Adjustment, Rope Tension Feedback Device Double Broken Rope Protection System |
| Servo System Brand | Inovance |
| Servo Motors Quantity | 5 Pieces |
| Electric Component Brand | ABB |
| Main Motor Brand | Eagle 11KW |
| Frequency Converter Brand | OURUI |
| Automatic Functionality | YES |
| Warranty Period | 1 Year |
