CNC Router Machine

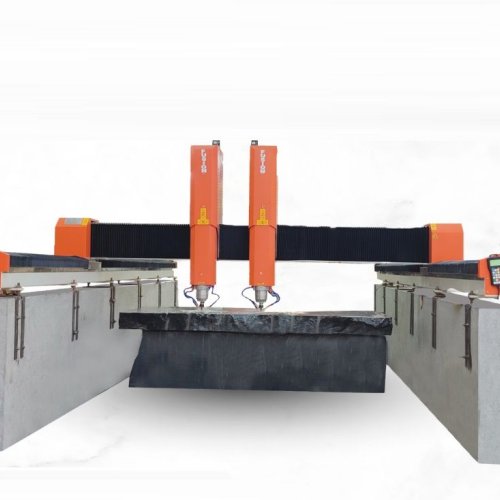

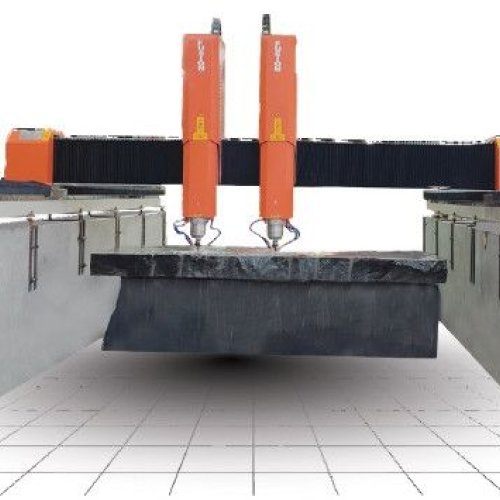

Leading Manufacturers, Exporters and Wholesaler of 3 Axis Dual Head Post CNC Router and Dual Head Split Type Three Axis CNC Router Machine from Ahmedabad.
| Business Type | Manufacturer, Exporter, Supplier |
| Type | CNC Router |
| Number Of Axis | 3 Axis |
| Head Type | Dual Head |
| Material | Metal And Plastic |
| Color | Various |
| Usage/Application | Woodworking, Metalworking, Plastic Fabrication |
| Power Supply | Electric |
| Maximum Speed | High Speed |
| Business Type | Manufacturer, Exporter, Supplier |
| Models | CS-2237-2 / CS-3050-2 |
| Working Size | 2200 X 3700 X 500 Mm |
| Machine Type | Gentry Type |
| Spindle Motor | 7.5 KW* 2 Water Cooling |
| Working Accuracy | ±0.5mm |
| Spindle Speed | 0-24000rpm |
| Max Traveling Speed | 20000mm/min |
| Max Working Speed | 12000mm/min |
| Working Voltage | AC380V/50Hz - 3 Phase |
| Guide & Ball Screw | Taiwan Hiwin Guide XY30 , Z 35 |
| Drive And Motor | Lead Shine Servo Systems |
| Control System | Weihong NK105 G2 Hand Control Remote System |
| XYZ Structure | X,Y Rail With Rack & Pinion Z -Ball Screw With High Precision Ball Screw -Taiwan |
